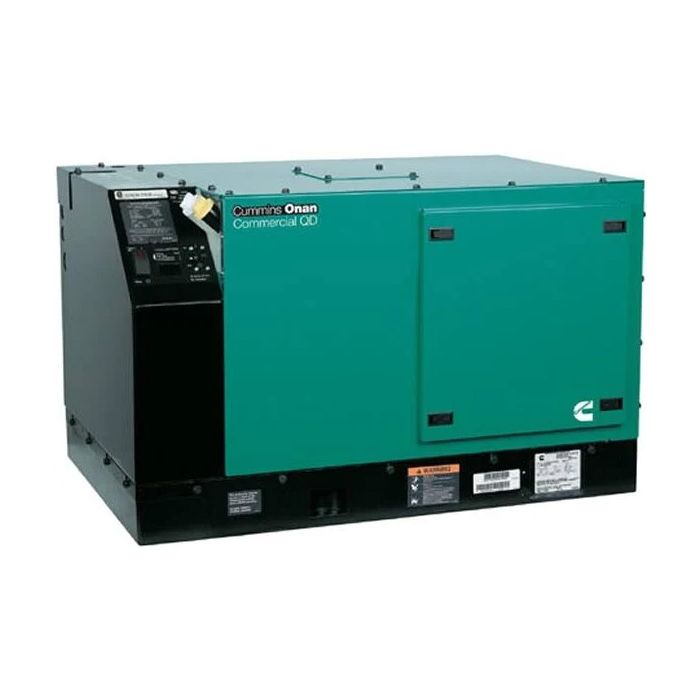

Cummins Onan QD 7500 Diesel Inverter Commercial Mobile Generator - 7.5HDKAT-41934, 7.5kW Prime, Single-Phase, 120 Volt, Liquid-Cooled
The Quiet Diesel Series models are the heavy-duty choice when low noise and low vibration are required. Their revolutionary design makes these generator sets up to 15 dB(A) quieter than other diesel-powered generators, and quieter than most gasoline sets. The units are totally enclosed, including cooling, muffler and intake systems. Cummins backs this generator with a standard 2 year limited warranty.
Features
| Manufacturer | Cummins |
|---|---|
| SKU | 7.5HDKAT-41934 |
| Model Number | QD 7500 |
| Alternate Model Number | A064K832 |
| Generator Grade | Commercial |
| Generator Style | Commercial Mobile Generator, Inverter Generator |
| Engine/Motor Brand | Kubota |
|---|---|
| Engine Model | 722 |
| Fuel Type | Diesel |
| Starting System | Electric |
| Horsepower | 22.0 HP |
| Engine/Motor Type | 3-Cylinder, Vertical, Liquid-Cooled, In-Line |
| Displacement | 719 cc |
| Engine RPM | 1600-3200 RPM |
| Generator RPM | 1600-3200 RPM |
| Fuel Tank | Add @ Checkout |
| Fuel Cons. @ 50% Ld | 0.6 |
| Fuel Cons. @ 100% Ld | 1.0 |
| Fuel Induction System | Electronic Fuel Injection |
| Engine Governor | Electronic |
| Operational Volume (dB @10ft) | 71.0 |
| Muffler/Exhaust | Enclosed |
| Altitude Affected | Yes, Call For More Information |
| Remote Panel | Add At Checkout |
|---|---|
| Wire Harness | Add At Checkout |
| Vibration Isolators | Yes |
| Battery For Electric Start | Not Included |
| Warranty | 2 Year (Limited) |
|---|
| Weight (Lbs.) | 420 |
|---|---|
| Ship Weight (Lbs.) | 460 |
| Operating Weight (Lbs.) | 420 |
| Free Shipping | Yes |
| Dimension No Wheel Kit | 24.23"W x 36.35"L x 22.28"H |
| Agency Compliance | CARB (California), EPA Tier 4 Final, National Park Approved |
| QSP | 4-10wk |
| Stk. Itm. | Yes |
| Surge Start Watts | 7,500.0 |
|---|---|
| Continuous Rated Watts | 7,500.0 |
| Prime Rating Watts | 7500 |
| Phase | Single-Phase |
| Voltage | 120 |
| Rated Amps @ Min Volt (Commonly 120v) | 62.5 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 2 |
| Alternator | Inverter |
| Voltage Regulation | +/- 2% |
| Voltage Regulation Type | Digital |
| Frequency Regulation | Plus Or Minus 0.5 Percent |
| Circuit Breakers | 35 Amp |
| Insulation | Class H |
