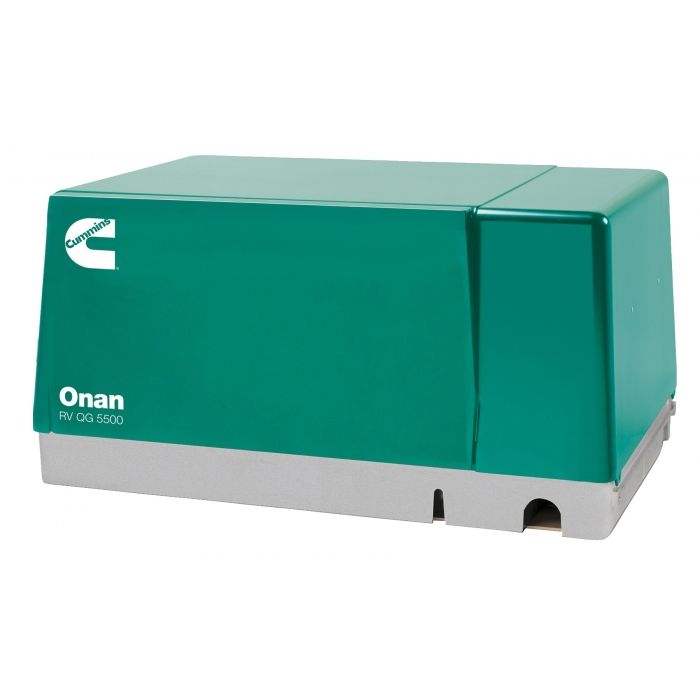

Cummins Onan QG 5500 LP Vapor RV Generator - 5.5HGJAB-1270, 5.5kW, Single-Phase, 120 Volt, Air-Cooled
The Cummins Onan 5.5 HGJAB features exceptionally low vibration levels and is the quietest in its class. The 5.5HGJAB is capable of running up to two air conditioners with power to spare. Cummins backs this generator with a standard 3 year limited warranty.
Features
| Manufacturer | Cummins |
|---|---|
| SKU | 5.5HGJAB-1270 |
| Model Number | QG 5500 |
| Alternate Model Number | A063B873 |
| Generator Grade | Recreational |
| Generator Style | RV Generator |
| Engine/Motor Brand | Cummins |
|---|---|
| Engine Model | EH65V |
| Fuel Type | LP (Propane) |
| Starting System | Electric |
| Horsepower | 20.0 HP |
| Engine/Motor Type | Air-Cooled, OHV, 90-degree V-twin |
| Displacement | 653 cc |
| Engine RPM | 2400 RPM |
| Generator RPM | 2400 RPM |
| LP Consumption 100% Ld | 1.1 |
| Auto Choke | Yes |
| Lubrication System | Full Pressure |
| Engine Governor | Mechanical |
| Operational Volume (dB @10ft) | 69.0 |
| Operational Volume (dB @50ft) | 60.0 |
| Auto Fuel Shut-Off Valve | Yes |
| Muffler/Exhaust | Enclosed Spark-Arrestor |
| Altitude Affected | Yes, Call For More Information |
| Remote Panel | Add At Checkout |
|---|---|
| Wire Harness | Add At Checkout |
| Vibration Isolators | Yes |
| Battery For Electric Start | Not Included |
| Warranty | 3 Year (Limited) |
|---|
| Weight (Lbs.) | 288 |
|---|---|
| Ship Weight (Lbs.) | 328 |
| Operating Weight (Lbs.) | 288 |
| Free Shipping | Yes |
| Dimension No Wheel Kit | 22.2"W x 33.6"L x 16.7"H |
| Agency Compliance | CARB (California), EPA, National Park Approved |
| QSP | 2wk |
| Stk. Itm. | Yes |
| Surge Start Watts | 5,500.0 |
|---|---|
| Continuous Rated Watts | 5,500.0 |
| Prime Rating Watts | 5,500 |
| Phase | Single-Phase |
| Voltage | 120 |
| Rated Amps @ Min Volt (Commonly 120v) | 45.8 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 2 |
| Alternator | Brush |
| Voltage Regulation | 1.1% |
| Voltage Regulation Type | Digital |
| Frequency Regulation | < 5% |
| Circuit Breakers | 30 Amp/30 Amp |
| Insulation | Class H |
