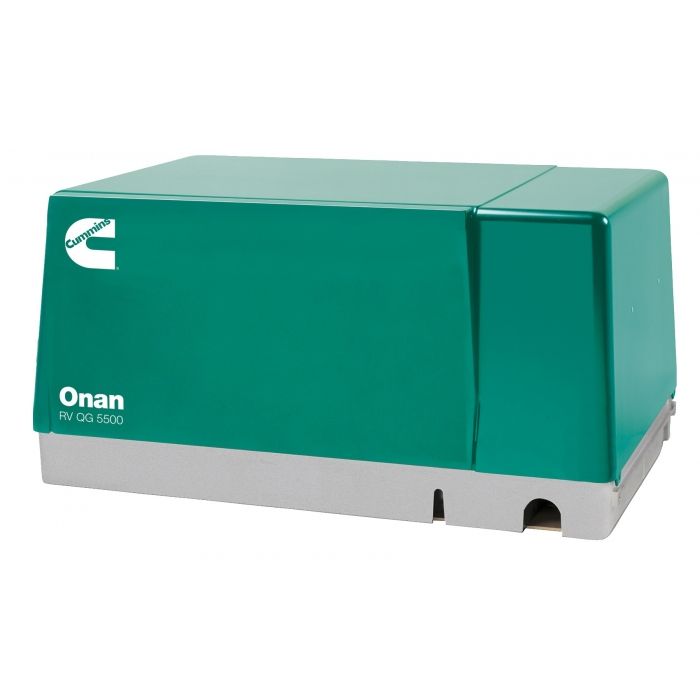

Cummins Onan QG 5500 Gasoline RV Generator - 5.5HGJAB-7103, 5.5kW, Single-Phase, 120 Volt, Air-Cooled, EVAP
The Cummins Onan 5.5 HGJAB features exceptionally low vibration levels and is the quietest in its class. The 5.5 HGJAB is capable of running up to two air conditioners with power to spare. Cummins backs this generator with a standard 3 year limited warranty.
Features
| Manufacturer | Cummins |
|---|---|
| SKU | 5.5HGJAB-7103 |
| Model Number | QG 5500 |
| Alternate Model Number | A063B870 |
| Generator Grade | Recreational |
| Generator Style | RV Generator |
| Engine/Motor Brand | Cummins |
|---|---|
| Engine Model | EH65V |
| Fuel Type | Gasoline |
| Starting System | Electric |
| Horsepower | 20.0 HP |
| Engine/Motor Type | Air-Cooled, OHV, 90-degree V-twin |
| Displacement | 653 cc |
| Engine RPM | 2400 RPM |
| Generator RPM | 2400 RPM |
| Fuel Cons. @ 50% Ld | 0.6 |
| Fuel Cons. @ 100% Ld | 0.9 |
| Fuel Induction System | Carburetor |
| Auto Choke | Yes |
| Lubrication System | Full Pressure |
| Engine Governor | Mechanical |
| Operational Volume (dB @10ft) | 69.0 |
| Operational Volume (dB @50ft) | 60.0 |
| Auto Fuel Shut-Off Valve | Yes |
| Muffler/Exhaust | Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model | Yes, generator is EVAP or evaporative emmissions compliant. Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system. |
| Altitude Affected | Yes, Call For More Information |
| Remote Panel | Add At Checkout |
|---|---|
| Wire Harness | Add At Checkout |
| Vibration Isolators | Yes |
| Battery For Electric Start | Not Included |
| Warranty | 3 Year (Limited) |
|---|
| Weight (Lbs.) | 288 |
|---|---|
| Ship Weight (Lbs.) | 328 |
| Operating Weight (Lbs.) | 288 |
| Free Shipping | Yes |
| Dimension No Wheel Kit | 22.2"W x 33.6"L x 16.7"H |
| Agency Compliance | EPA, National Park Approved |
| QSP | 2wk |
| Stk. Itm. | No |
| Surge Start Watts | 5,500.0 |
|---|---|
| Continuous Rated Watts | 5,500.0 |
| Prime Rating Watts | 5,500 |
| Phase | Single-Phase |
| Voltage | 120 |
| Rated Amps @ Min Volt (Commonly 120v) | 45.8 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 2 |
| Alternator | Brush |
| Voltage Regulation | 1.1% |
| Voltage Regulation Type | Digital |
| Frequency Regulation | < 5% |
| Circuit Breakers | 30 Amp/20 Amp |
| Insulation | Class H |
