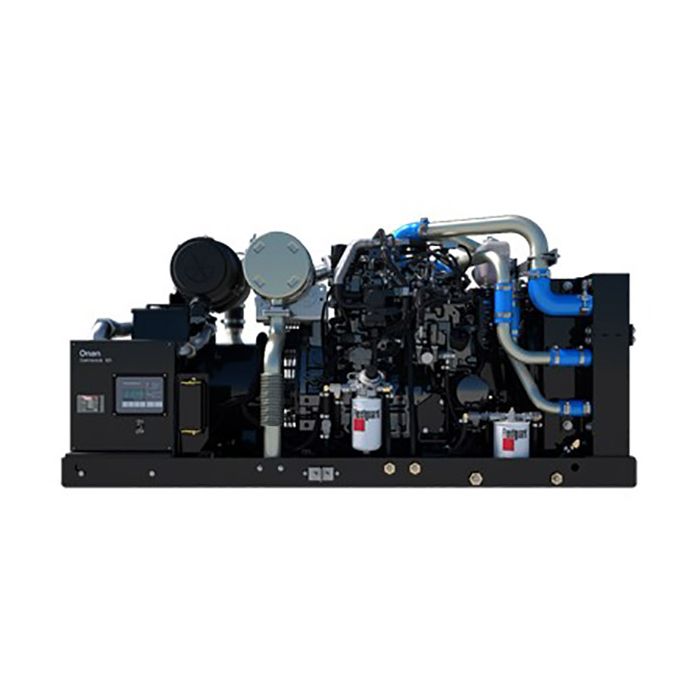

Cummins Onan SD 20000 Diesel Commercial Mobile Generator - 20HDKDB-01, 20kW Prime, Single-Phase, 120/240 Volt, Liquid-Cooled
Features
• Tier 4 emissions compliance without regeneration
• Tier 4 capabilities to monitor DEF level and manually activate or inhibit exhaust system cleaning
• Over 100 years of Cummins power generation technology and innovation
• Powerful 36 hp engine
• Total weight - 1035 lbs. (469 kg)
• Low vibration for smooth operation
• Cross-flow radiator provides increased cooling efficiency
• One-year (prime) and two-year (standby) base warranty supported by a worldwide Cummins twenty-four hour, seven days-a-week, distributor network
• Accepts 100% rated load in a single step
• Standard Power Command Control (PCC) 1300 technology provides digital (precise) frequency and voltage regulation
| Manufacturer | Cummins |
|---|---|
| SKU | 20HDKDB-01 |
| Model Number | SD 20000 |
| Alternate Model Number | A065Z421 |
| Generator Grade | Commercial |
| Generator Style | Commercial Mobile Generator |
| Engine/Motor Brand | Kubota |
|---|---|
| Engine Model | D1803-CR-TIE4BG |
| Fuel Type | Diesel |
| Starting System | Electric |
| Horsepower | 36.2 HP |
| Engine/Motor Type | 3-Cylinder, 4-Cycle, Vertical, Liquid-Cooled, In-Line |
| Displacement | 1498 cc |
| Engine RPM | 1800 RPM |
| Generator RPM | 1800 RPM |
| Fuel Tank | Add @ Checkout |
| Fuel Cons. @ 50% Ld | 0.7 |
| Fuel Cons. @ 100% Ld | 1.4 |
| Fuel Induction System | Electronic Fuel Injection |
| Engine Governor | Electronic |
| Operational Volume (dB @10ft) | 79.0 |
| Altitude Affected | Yes, Call For More Information |
| Remote Panel | Add At Checkout |
|---|---|
| Wire Harness | Add At Checkout |
| Vibration Isolators | Yes |
| Battery For Electric Start | Not Included |
| Warranty | 2 Years Or 2000 Hours |
|---|
| Weight (Lbs.) | 1035 |
|---|---|
| Ship Weight (Lbs.) | 1450 |
| Operating Weight (Lbs.) | 1035 |
| Free Shipping | Yes |
| Unit Dimensions | 25.7"W x 57.2"L x 28.2"H |
| Agency Compliance | CARB (California), EPA Tier 4 Final |
| Stk. Itm. | No |
| Surge Start Watts | 20,000.0 |
|---|---|
| Continuous Rated Watts | 20,000.0 |
| Prime Rating Watts | 20,000 |
| Phase | Single-Phase |
| Voltage | 120, 240 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) | 83.0 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 3 |
| Voltage Regulation | +/- 0.5% |
| Frequency Regulation | Plus Or Minus 0.5 Percent |
| Circuit Breakers | 100 Amp |
| Bearings | Single-Bearing (for Close-Coupling to Engine) |
| Insulation | Class H |
