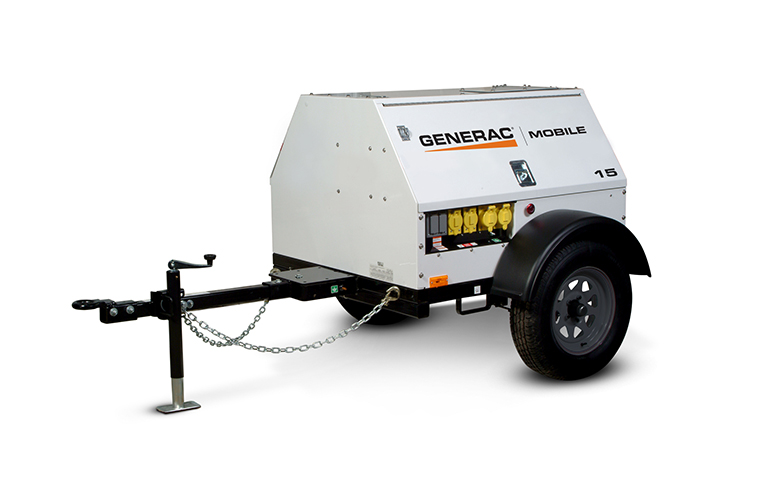

Generac MLG15M 13kW Towable Mobile Diesel Generator with Mitsubishi Engine
Generac Magnum MLG series mobile diesel generators offer reliable single-phase power for smaller-scale applications, including power for job trailers, construction crews and special events. MLG generators give you Final Tier 4 power you can trust, while maximizing fuel efficiency and performance. MLG series generators are ideal for smaller jobs, and minimize the occurrence of light loading and wet stacking.
| Manufacturer | Generac |
|---|---|
| SKU | MLG15 |
| Model Number | MLG15 |
| Alternate Model Number | 6783 |
| Generator Grade | Commercial, Emergency, Industrial, Marine, Professional |
| Generator Style | Portable Generator, Towable Generator |
| Special Features | 1800 RPM, 30 Amp Plug, 50 Amp Plug, Brushless Alternator, Fuel Gauge, GFCI Protection - Partial, Hour Meter, Liquid Cooled, Wheel Kit |
| Engine/Motor Brand | Mitsubishi |
|---|---|
| Engine Model | S4L2-Y461ML |
| Fuel Type | Diesel |
| Starting System | Electric, Key |
| Horsepower | 22.3 HP |
| Engine/Motor Type | 4-Cylinder, Liquid-Cooled, Naturally Aspirated, 1.8L |
| Engine RPM | 1800 RPM |
| Generator RPM | 1800 RPM |
| Fuel Capacity | 56.00 Gallons |
| Run Time @ 50% Ld (Hrs) | 86.0 |
| Run Time @ 100% Ld (Hrs) | 43.0 |
| Fuel Cons. @ 50% Ld | 0.65 Gallons/Hour |
| Fuel Cons. @ 75% Ld | 0.98 Gallons/Hour |
| Fuel Cons. @ 100% Ld | 1.30 Gallons/Hour |
| Fuel Gauge | Included |
| Enclosure | Steel |
| Fuel Tank Material | Plastic |
| Low Oil Shutdown/Alert | Yes |
| Air Cleaner Element | Dry Type Cartridge |
| Operational Volume (dB @23ft) | 69.0 |
| Altitude Affected | Yes, Call For More Information |
| Portability/Wheel Kit | Trailer |
|---|---|
| Lifting Hook/Eye | Included |
| Battery For Electric Start | Included |
| Engine Warranty | 3 Years Or 3000 Hours Limited |
|---|---|
| Generator Warranty | 2 Years Or 2000 Hours |
| Built In | United States (Assembly) |
|---|
| Weight (Lbs.) | 1425 |
|---|---|
| Ship Weight (Lbs.) | 1475 |
| Operating Weight (Lbs.) | 1823 |
| Free Shipping | Yes |
| Unit Dimensions | 105.0"L x 68.0"W x 56.0"H |
| Agency Compliance | CARB (California), CSA (Canada), EPA, EPA Tier 4, UL 2200 |
| Stk. Itm. | Yes |
| Surge Start Watts | 14,000.0 |
|---|---|
| Continuous Rated Watts | 13,000.0 |
| Prime Rating Watts | 13,000 |
| Standby Rating Watts | 14,000 |
| Phase | Single-Phase |
| Voltage | 120, 240 |
| Rated Amps @ Min Volt (Commonly 120v) | 108.0 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) | 54.0 |
| GFCI Panel Protection | Partial |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Alternator | Brushless |
| Voltage Regulation | +/- 1% |
| Circuit Breakers | Yes |
| Control Panel Display | Yes, Hour Meter |
